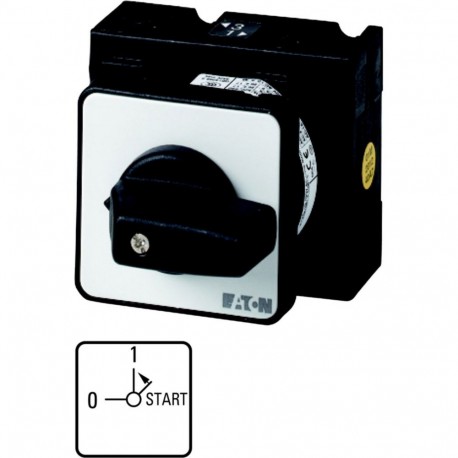

EATON - MOELLER T3-1-15511/E T3-1-15511/E 085598 Y7-85598 EATON ELECTRIC ON-OFF button, Contacts: 2, 32 A, front plate: 0-1 START, 90 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-15511/E 085598 Y7-85598 EATON ELECTRIC ON-OFF button, Contacts: 2, 32 A, front plate: 0-1 START, 90 °, ..

T3-1-15511/E

085598

Y7-85598

EATON - MOELLER

1 Pcs.

ON-OFF button, Contacts: 2, 32 A, front plate: 0-1 ON-OFF pushbutton switch 2-pole 32 A Indicator plate: 0-1 Eaton Moeller® series T3 ON-OFF button, T3, 32 A, flush mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, With 0 (Off) position, With spring-return to 1, 0-1 ON OFF button, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, With spring-return to 1, 1 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Accessory ON OFF button
Catalog Number
085598
Model Code
T3-1-15511/E
EAN
4015080855989
Product Length/Depth
79 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.11 kg
Certifications
CSA
IEC/EN 60947-3
CSA Class No.: 3211-05
CSA File No.: 012528
VDE 0660
UL
IEC/EN 60204
UL 60947-4-1
IEC/EN 60947
CE
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
UL Category Control No.: NLRV
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 085598 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) On/Off switch
Number of poles (EF001391) 2
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated permanent current Iu (EF001389) 32 A
Number of switch positions (EF000231) 2
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) Yes
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 48x48 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
