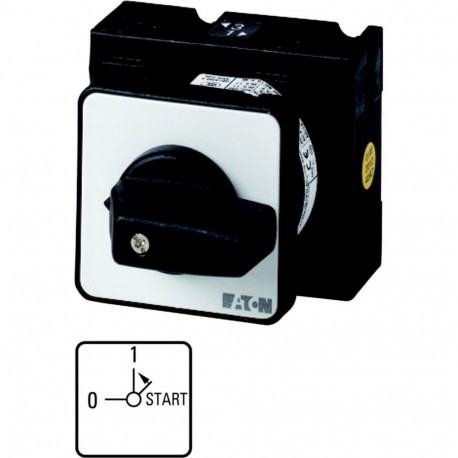

EATON - MOELLER T3-1-15341/E T3-1-15341/E 016480 Y7-16480 EATON ELECTRIC On switches, Contacts: 1, 32 A, front plate: START STOP, 45 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-15341/E 016480 Y7-16480 EATON ELECTRIC On switches, Contacts: 1, 32 A, front plate: START STOP, 45 °, m..

T3-1-15341/E

016480

Y7-16480

EATON - MOELLER

1 Pcs.

On switches, Contacts: 1, 32 A, front plate: START 1-pole 32 A gear switch Indicator plate: START Eaton Moeller® series T3 On switches, T3, 32 A, flush mounting, 1 contact unit(s), Contacts: 1, 45 °, momentary, With 0 (Off) position, With spring-return to START, START On switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 1, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, With spring-return to START, 1 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: START

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for basic machine control, this Eaton Moeller on/off switch (T3-1-15341/E) enables direct manual interruption or energization of electrical loads. Such devices are deployed extensively on industrial machinery to manage incoming power safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 On switch
Catalog Number
016480
Model Code
T3-1-15341/E
EAN
4015080164807
Product Length/Depth
79 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.11 kg
Certifications
IEC/EN 60204
CSA File No.: 012528
CSA
UL Category Control No.: NLRV
UL File No.: E36332
CE
VDE 0660
CSA-C22.2 No. 94
UL
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
IEC/EN 60947
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
