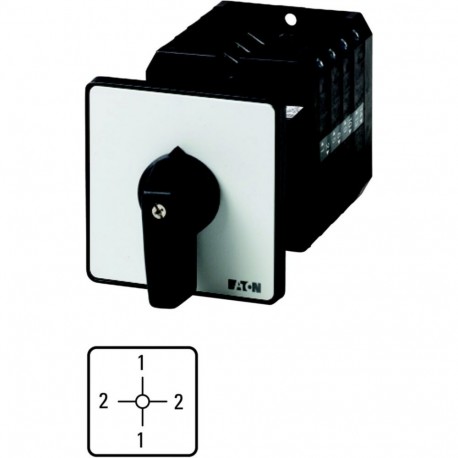

EATON - MOELLER T3-1-15111/Z T3-1-15111/Z 090314 Y7-90314 EATON ELECTRIC Two-way switch, Contacts: 4, 32 A, front plate: 2-1-2-1, 90 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-15111/Z 090314 Y7-90314 EATON ELECTRIC Two-way switch, Contacts: 4, 32 A, front plate: 2-1-2-1, 90 °, m..

T3-1-15111/Z

090314

Y7-90314

EATON - MOELLER

1 Pcs.

Two-way switch, Contacts: 4, 32 A, front plate: 2-1-2-1, 90 °, maintained, rear mounting Bi-directional switch 4-pole 32 A Indicator plate: 2-1-2-1 90 Eaton Moeller® series T3 Two-way switch, T3, 32 A, rear mounting, 1 contact unit(s), Contacts: 4, 90 °, maintained, Without 0 (Off) position, 2-1-2-1, Design number 15111 Two-way switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 2-1-2-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T3-1-15111/Z two-way switch is an electromechanical device engineered to manually alternate electrical pathways between multiple distinct circuits within industrial control systems. These resilient components provide secure switching functions for routing power signals inside complex automation enclosures. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): On/Off switch
  • Number of poles (EF001391): 1
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Two-way switch
Catalog Number
090314
Model Code
T3-1-15111/Z
EAN
4015080903147
Product Length/Depth
121 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.147 kg
Certifications
CSA-C22.2 No. 94
UL
CSA File No.: 012528
VDE 0660
IEC/EN 60947-3
CE
IEC/EN 60947
UL File No.: E36332
UL Category Control No.: NLRV
CSA
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
