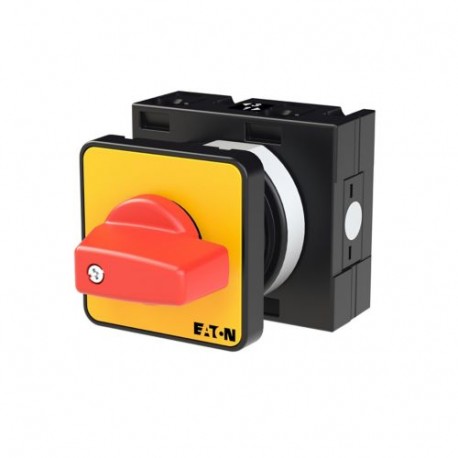

EATON - MOELLER T3-1-102/E-RT T3-1-102/E-RT 016318 Y7-16318 EATON ELECTRIC On-Off switch, 2 pole, 32 A, Emergency-Stop function, 90 °, flu.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-102/E-RT 016318 Y7-16318 EATON ELECTRIC On-Off switch, 2 pole, 32 A, Emergency-Stop function, 90 °, flu..

T3-1-102/E-RT

016318

Y7-16318

EATON - MOELLER

1 Pcs.

On-Off switch, 2 pole, 32 A, Emergency-Stop function, 90 °, flush mounting ON-OFF 2-pole disconnector switch 32 A Red/Yellow 90 handle Eaton Moeller® series T3 On-Off switch, T3, 32 A, flush mounting, 1 contact unit(s), 2 pole, Emergency switching off function, with red thumb grip and yellow front plate On-Off switch, Product range: On-Off switch, Part group reference: T3, Stop Function: Emergency switching off function, with red thumb grip and yellow front plate, 2 pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for reliable circuit control, this Eaton Moeller T3-1-102/E-RT on-off switch functions as an emergency-stop component in industrial automation setups. Units of this type provide straightforward manual interruption of electrical currents to safeguard operational personnel.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 2
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 On-off switch
Catalog Number
016318
Model Code
T3-1-102/E-RT
EAN
4015080163183
Product Length/Depth
79 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.11 kg
Certifications
CSA File No.: 012528
VDE 0660
UL File No.: E36332
IEC/EN 60947
IEC/EN 60947-3
UL 60947-4-1
UL Category Control No.: NLRV
CE
IEC/EN 60204
UL
CSA
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
