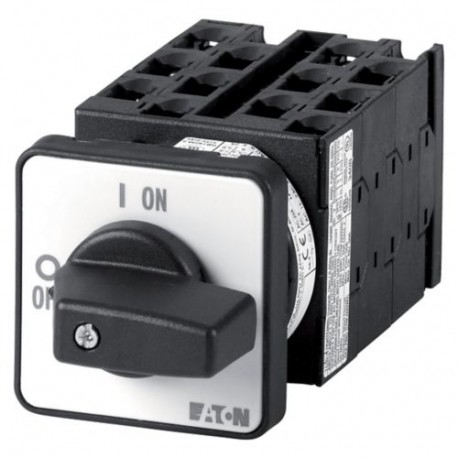

T0-6-66/E 015487 Y7-15487 EATON ELECTRIC Reversing multi-speed switches, Contacts: 12, 20 A, One tapped wind..
T0-6-66/E
015487
Y7-15487
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller T0-6-66/E reversing multi-speed switch serves as a manual interface for controlling multi-pole motor windings and reversing drive direction in industrial machinery. These versatile components allow operators to select specific speeds safely during production processes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reversing Dahlander switch
- Number of poles (EF001391): 3
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 20 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
- Rated operation power at AC-3, 400 V (EF001364): 4 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
CSA-C22.2 No. 94
IEC/EN 60947
CSA Class No.: 3211-05
CSA
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL
UL Category Control No.: NLRV
UL File No.: E36332
VDE 0660
CE
IEC/EN 60204
UL 60947-4-1
