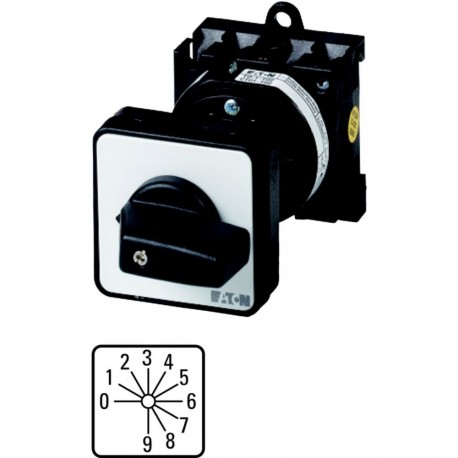

EATON - MOELLER T0-4-15602/Z T0-4-15602/Z 038860 Y7-38860 EATON ELECTRIC Coding switches, Contacts: 8, 20 A, Binary BCD code 0-9, front p.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-15602/Z 038860 Y7-38860 EATON ELECTRIC Coding switches, Contacts: 8, 20 A, Binary BCD code 0-9, front p..

T0-4-15602/Z

038860

Y7-38860

EATON - MOELLER

1 Pcs.

Coding switches, Contacts: 8, 20 A, Binary BCD code 0-9, front plate: 0-9, 30 °, maintained, rear mounting Encoder switch 8 poles 20 A BCD Code 0-9 Indicator Plate: Eaton Moeller® series T0 Coding switches, T0, 20 A, rear mounting, 4 contact unit(s), Contacts: 8, 30 °, maintained, With 0 (Off) position, 0-9, Design number 15602 Coding switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP65, Design: rear mounting, switching function: Binary BCD code 0-9, Switching angle: 30 °, Switching performance: maintained, With 0 (Off) position, 4 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-9

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Coding switches such as the Eaton Moeller part number T0-4-15602/Z enable precise manual data input and circuit configuration through rotary selector action. Engineers integrate these devices into control desks and automation enclosures to set parameters or select operational configurations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Coding switch
  • Number of poles (EF001391): 0
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 10
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Coding switch
Catalog Number
038860
Model Code
T0-4-15602/Z
EAN
4015080388609
Product Length/Depth
147 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.187 kg
Certifications
CSA File No.: 012528
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
IEC/EN 60947
UL Category Control No.: NLRV
CSA Class No.: 3211-05
UL
UL File No.: E36332
CSA-C22.2 No. 94
CE
VDE 0660
UL 60947-4-1
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
