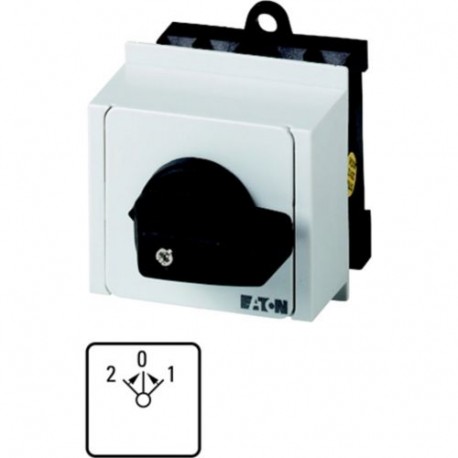

EATON - MOELLER T0-4-15374/IVS T0-4-15374/IVS 013716 Y7-13716 EATON ELECTRIC Changeoverswitches, Contacts: 8, 20 A, front plate: 2 0 1, 45 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-15374/IVS 013716 Y7-13716 EATON ELECTRIC Changeoverswitches, Contacts: 8, 20 A, front plate: 2 0 1, 45 ..

T0-4-15374/IVS

013716

Y7-13716

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 8, 20 A, front plate: 2>0<1, 45 °, momentary, service distribution board mounting Switch Switch 8 poles 20 A Indicator plate: 2>0<1 45° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, service distribution board mounting, 4 contact unit(s), Contacts: 8, 45 °, momentary, With 0 (Off) position, with spring-return from both directions to 0, 2>0<1, Design number 15374 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, 4 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 2>0<1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
013716
Model Code
T0-4-15374/IVS
EAN
4015080137160
Product Length/Depth
111 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.179 kg
Certifications
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
CE
UL
UL 60947-4-1
UL Category Control No.: NLRV
IEC/EN 60947-3
CSA File No.: 012528
UL File No.: E36332
CSA
CSA Class No.: 3211-05
IEC/EN 60204
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 013716 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) Reverser
Number of poles (EF001391) 4
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated permanent current Iu (EF001389) 20 A
Number of switch positions (EF000231) 3
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) Yes
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 4
Suitable for floor mounting (EF007243) Yes
Suitable for front mounting (EF007246) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 48x48 mm
Degree of protection (IP), front side (EF003118) IP30
Degree of protection (NEMA), front side (EF011961) 2
