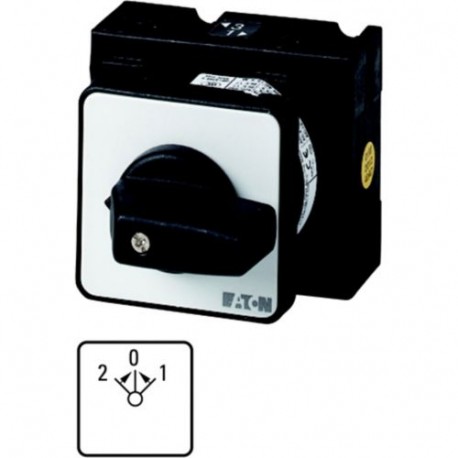

EATON - MOELLER T0-4-15374/E T0-4-15374/E 013713 Y7-13713 EATON ELECTRIC Changeoverswitches, Contacts: 8, 20 A, front plate: 2 0 1, 45 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-15374/E 013713 Y7-13713 EATON ELECTRIC Changeoverswitches, Contacts: 8, 20 A, front plate: 2 0 1, 45 °,..

T0-4-15374/E

013713

Y7-13713

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 8, 20 A, front plate: 2>0<1, 45 °, momentary, flush mounting Switch Switch 8 poles 20 A Indicator plate: 2>0<1 45° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 4 contact unit(s), Contacts: 8, 45 °, momentary, With 0 (Off) position, with spring-return from both directions to 0, 2>0<1, Design number 15374 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, 4 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 2>0<1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-4-15374/E is a changeoverswitch engineered for redirecting electrical currents between multiple alternative circuits in automation systems. Such devices are commonly deployed to govern operational modes, alternate power sources, or reverse motor directions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 4
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
013713
Model Code
T0-4-15374/E
EAN
4015080137139
Product Length/Depth
105 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.156 kg
Certifications
CE
UL 60947-4-1
IEC/EN 60204
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
IEC/EN 60947
IEC/EN 60947-3
UL
CSA File No.: 012528
CSA
CSA Class No.: 3211-05
UL Category Control No.: NLRV
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
