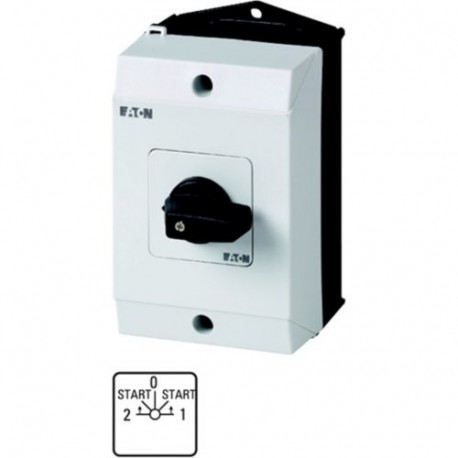

EATON - MOELLER T0-3-8426/I1 T0-3-8426/I1 222672 Y7-222672 EATON ELECTRIC Auxiliary winding switch, Contacts: 6, 20 A, front plate: 2-STA.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-8426/I1 222672 Y7-222672 EATON ELECTRIC Auxiliary winding switch, Contacts: 6, 20 A, front plate: 2-STA..

T0-3-8426/I1

222672

Y7-222672

EATON - MOELLER

1 Pcs.

Auxiliary winding switch, Contacts: 6, 20 A, front plate: 2-START>0 T0-3-8426/I1 Eaton Moeller® series T0 Auxiliary winding switch, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, With 0 (Off) position, with spring-return from both directions to 0, 2-START>0 Auxiliary winding switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Degree of Protection: IP65, Design: surface mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, with spring-return from both directions to 0, 3 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 2-START>0

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Auxiliary winding switch
Catalog Number
222672
Model Code
T0-3-8426/I1
EAN
4015082226725
Product Length/Depth
137 mm
Product Height
122 mm
Product Width
80 mm
Product Weight
0.288 kg
Certifications
EN 60947
EN 60204
IEC 60947
VDE
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 222672 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) Reverser
Number of poles (EF001391) 2
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated permanent current Iu (EF001389) 20 A
Number of switch positions (EF000231) 5
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) Yes
Device construction (EF008240) Surface mounted device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) Yes
Suitable for front mounting (EF007246) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) Yes
Type of control element (EF006976) Toggle
Front shield size (EF007176) 48x48 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
