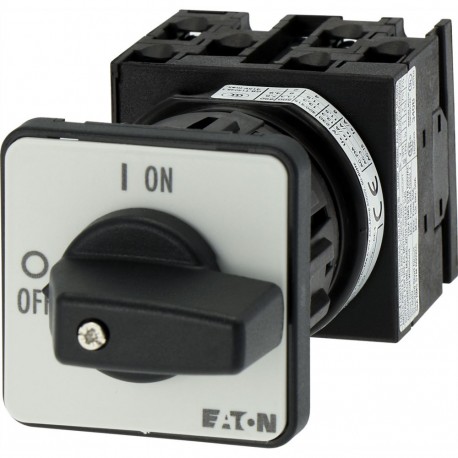

T0-3-8342/EZ 045997 Y7-45997 EATON ELECTRIC On-Off switch, 6 pole, 20 A, 90 °, centre mounting
T0-3-8342/EZ
045997
Y7-45997
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
T0-3-8342/EZ 045997 Y7-45997 EATON ELECTRIC On-Off switch, 6 pole, 20 A, 90 °, centre mounting is an On-Off switch built by Eaton Moeller for controlling electrical loads and managing circuit power distribution in industrial panels. Devices of this type provide reliable manual switching for motor loads and general distribution circuits.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Number of poles (EF001391): 6
More info
▲General specifications
CSA Class No.: 3211-05
IEC/EN 60204
UL File No.: E36332
CSA
CSA File No.: 012528
CSA-C22.2 No. 94
VDE 0660
IEC/EN 60947
UL 60947-4-1
UL Category Control No.: NLRV
CE
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
