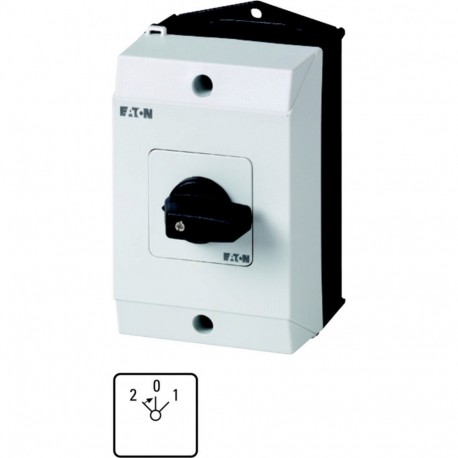

EATON - MOELLER T0-3-15393/I1 T0-3-15393/I1 218980 Y7-218980 EATON ELECTRIC Universal control switches, Contacts: 6, 20 A, front plate: 2 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-15393/I1 218980 Y7-218980 EATON ELECTRIC Universal control switches, Contacts: 6, 20 A, front plate: 2 ..

T0-3-15393/I1

218980

Y7-218980

EATON - MOELLER

1 Pcs.

Universal control switches, Contacts: 6, 20 A, front plate: 2>0-1, 45 °, momentary/maintained, surface mounting T0-3-15393/I1 Eaton Moeller® series T0 Universal control switches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary/maintained, With 0 (Off) position, With spring-return to 0, 2>0-1, Design number 15393 Universal control switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Degree of Protection: IP65, Design: surface mounting, Switching angle: 45 °, Switching performance: momentary/maintained, With 0 (Off) position, With spring-return to 0, 3 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 2>0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T0-3-15393/I1 universal control switch functions as a specialized manual control device used in industrial panels to route signals and manage operational states safely. Engineers deploy such switches in control circuits to direct multi-step processes and isolate specific machine functions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Group switch
  • Number of poles (EF001391): 0
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Surface mounted device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): Yes
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Universal control switch
Catalog Number
218980
Model Code
T0-3-15393/I1
EAN
4015082189808
Product Length/Depth
137 mm
Product Height
122 mm
Product Width
80 mm
Product Weight
0.288 kg
Certifications
IEC 60947
EN 60204
EN 60947
VDE
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
