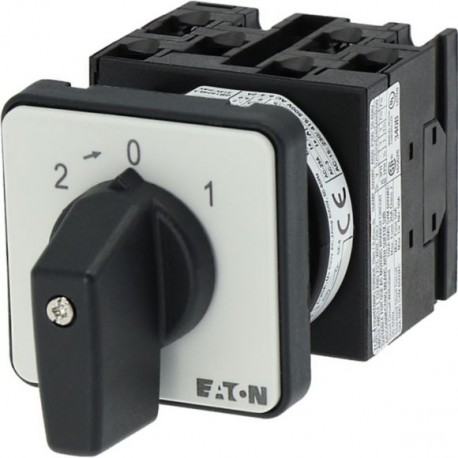

EATON - MOELLER T0-3-15393/E T0-3-15393/E 057841 Y7-57841 EATON ELECTRIC Universal control switches, Contacts: 6, 20 A, front plate: 2 0-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-15393/E 057841 Y7-57841 EATON ELECTRIC Universal control switches, Contacts: 6, 20 A, front plate: 2 0-..

T0-3-15393/E

057841

Y7-57841

EATON - MOELLER

1 Pcs.

Universal control switches, Contacts: 6, 20 A, front plate: 2>0-1, 45 °, momentary/maintained, flush mounting Universal Control Switch 6-pole 20 A Indicator plate: 2>0-1 Eaton Moeller® series T0 Universal control switches, T0, 20 A, flush mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary/maintained, With 0 (Off) position, With spring-return to 0, 2>0-1, Design number 15393

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller universal control switch offers flexible signal routing and mode selection across demanding automated production systems. These robust selector units enable technicians to manage complex multi-circuit switching requirements with absolute reliability.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-3-15393/E
  • Catalogue code: 057841
  • Catalogue title: T0-3-15393/E 057841 Y7-57841 EATON ELECTRIC Universal control switches, Contacts: 6, 20 A, front plate: 2 0-..
  • Product description: General specifications Product Name Eaton Moeller® series T0 Universal control switch Catalog Number 057841 Model Code T0-3-15393/E EAN 4015080578413 Product Length/Depth 95 mm Product Height 48 mm Product Width 48 mm Pr
  • Manufacturer summary: Universal control switches, Contacts: 6, 20 A, front plate: 2>0-1, 45 °, momentary/maintained, flush mounting Universal Control Switch 6-pole 20 A Indicator plate: 2>0-1 Eaton Moeller® series T0 Universal control switche

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Universal control switch
Catalog Number
057841
Model Code
T0-3-15393/E
EAN
4015080578413
Product Length/Depth
95 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.127 kg
Certifications
CSA
CSA Class No.: 3211-05
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
CE
IEC/EN 60947-3
UL
UL 60947-4-1
UL File No.: E36332
CSA File No.: 012528
VDE 0660
CSA-C22.2 No. 94
UL Category Control No.: NLRV
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
