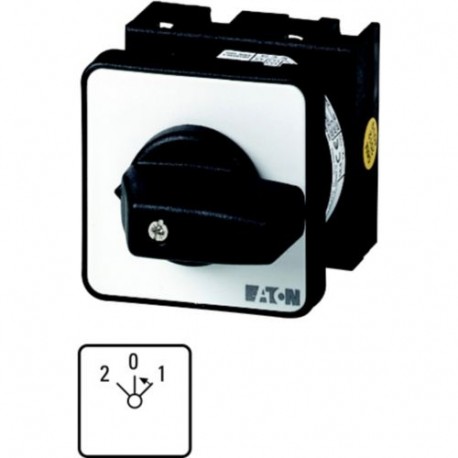

EATON - MOELLER T0-3-15392/E T0-3-15392/E 043603 Y7-43603 EATON ELECTRIC Universal control switches, Contacts: 6, 20 A, front plate: 2-0 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-15392/E 043603 Y7-43603 EATON ELECTRIC Universal control switches, Contacts: 6, 20 A, front plate: 2-0 ..

T0-3-15392/E

043603

Y7-43603

EATON - MOELLER

1 Pcs.

Universal control switches, Contacts: 6, 20 A, front plate: 2-0<1, 45 °, maintained, flush mounting Universal Control Switch 6-Pole 20 A Indicator Plate: 2-0<1 Eaton Moeller® series T0 Universal control switches, T0, 20 A, flush mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, With 0 (Off) position, With spring-return to 0, 2-0<1, Design number 15392 Universal control switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, With spring-return to 0, 3 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 2-0<1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller universal control switches like the T0-3-15392/E 043603 Y7-43603 EATON ELECTRIC serve as manual interface devices in industrial control panels, enabling operators to direct complex circuit routines and select operational modes securely. Group switches manage multiple circuits simultaneously to streamline machine operation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Group switch
  • Number of poles (EF001391): 0
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Universal control switch
Catalog Number
043603
Model Code
T0-3-15392/E
EAN
4015080436034
Product Length/Depth
95 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.127 kg
Certifications
CSA-C22.2 No. 94
IEC/EN 60947
UL Category Control No.: NLRV
CSA
CE
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL 60947-4-1
UL
CSA File No.: 012528
UL File No.: E36332
IEC/EN 60204
VDE 0660
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
