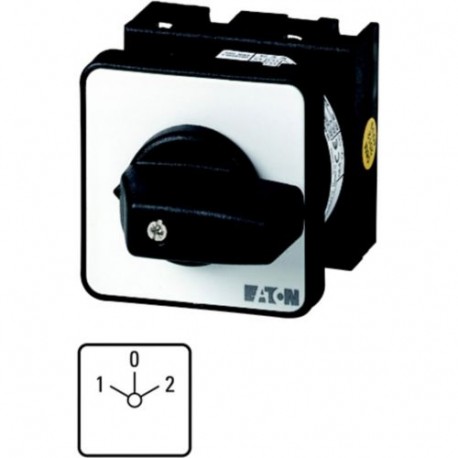

EATON - MOELLER T0-3-15098/E T0-3-15098/E 012909 Y7-12909 EATON ELECTRIC Changeoverswitches, Contacts: 6, 20 A, front plate: 1-0-2, 45 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-15098/E 012909 Y7-12909 EATON ELECTRIC Changeoverswitches, Contacts: 6, 20 A, front plate: 1-0-2, 45 °,..

T0-3-15098/E

012909

Y7-12909

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 20 A, front plate: 1-0-2, 45 °, maintained, flush mounting Switch Switch 6 poles 20 A Indicator plate: 1-0-2 45° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, With 0 (Off) position, 1-0-2, Design number 15098 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 3 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1-0-2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a reliable changeoverswitch, this Eaton Moeller T0-3-15098/E unit directs electrical power between multiple pathways within control circuits and automated systems. Industrial operators utilize such devices to seamlessly shift operational modes or feed lines without interrupting panel safety protocols. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
012909
Model Code
T0-3-15098/E
EAN
4015080129097
Product Length/Depth
95 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.127 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
UL Category Control No.: NLRV
IEC/EN 60947
CSA
CSA Class No.: 3211-05
IEC/EN 60204
VDE 0660
IEC/EN 60947-3
CE
UL File No.: E36332
UL
UL 60947-4-1
CSA File No.: 012528
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
