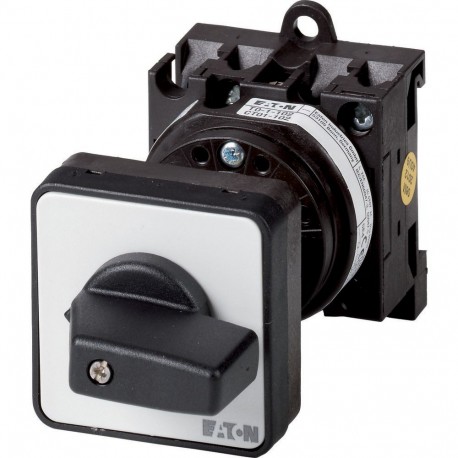

EATON - MOELLER T0-2-SOND*/Z T0-2-SOND*/Z 907840 Y7-907840 EATON ELECTRIC Non-standard switch, T0, 20 A, rear mounting, 2 contact unit(s) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-SOND*/Z 907840 Y7-907840 EATON ELECTRIC Non-standard switch, T0, 20 A, rear mounting, 2 contact unit(s)

T0-2-SOND*/Z

907840

Y7-907840

EATON - MOELLER

10 Pcs.

Non-standard switch, T0, 20 A, rear mounting, 2 contact unit(s) T0-2-SOND*/Z Eaton Moeller® series T0 Non-standard switch, T0, 20 A, rear mounting, 2 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T0, Notes: customized version according to form, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller non-standard switch accommodates custom electrical switching configurations required for specialized industrial machinery and bespoke automation panels. These adaptable rotary units provide tailored circuit control where standard catalog devices are insufficient. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Non-standard switch
Catalog Number
907840
Model Code
T0-2-SOND*/Z
Product Length/Depth
128 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.134 kg
Certifications
IEC/EN 60947
IEC/EN 60204
IEC/EN 60947-3
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
