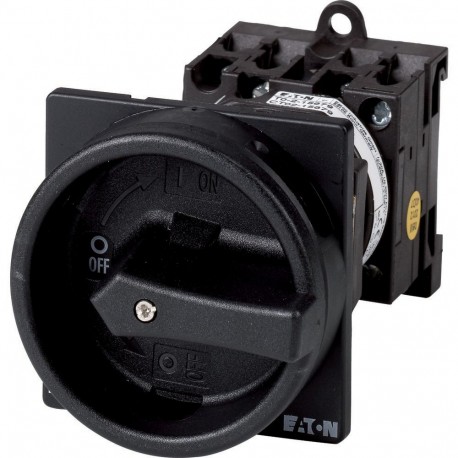

EATON - MOELLER T0-2-SOND*/V/SVB-SW T0-2-SOND*/V/SVB-SW 908055 Y7-908055 EATON ELECTRIC Non-standard switch, T0, 20 A, rear mounting, 2 contact .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-SOND*/V/SVB-SW 908055 Y7-908055 EATON ELECTRIC Non-standard switch, T0, 20 A, rear mounting, 2 contact ..

T0-2-SOND*/V/SVB-SW

908055

Y7-908055

EATON - MOELLER

10 Pcs.

Non-standard switch, T0, 20 A, rear mounting, 2 contact unit(s) T0-2-SOND*/V/SVB-SW Eaton Moeller® series T0 Non-standard switch, T0, 20 A, rear mounting, 2 contact unit(s), STOP function, With black rotary handle and locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T0, Stop Function: STOP function, With black rotary handle and locking ring, Notes: customized version according to form, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

T0-2-SOND*/V/SVB-SW Eaton Moeller non-standard switch offers tailored circuit control and manual disconnection capabilities for specialized industrial setups. Custom configuration switches accommodate unique voltage and contact requirements in automation panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Non-standard switch
Catalog Number
908055
Model Code
T0-2-SOND*/V/SVB-SW
Product Length/Depth
128 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.158 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
