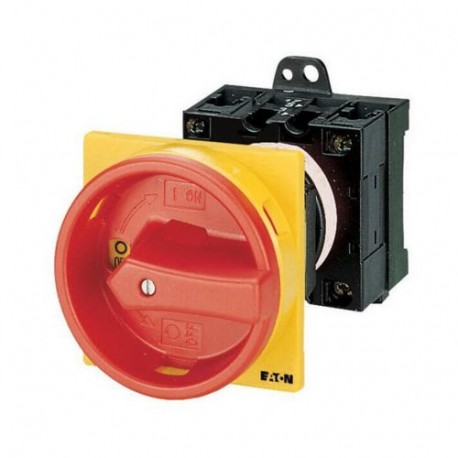

EATON - MOELLER T0-2-SOND*/V/SVB T0-2-SOND*/V/SVB 907818 Y7-907818 EATON ELECTRIC Non-standard switch, T0, 20 A, rear mounting, 2 contact uni.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-SOND*/V/SVB 907818 Y7-907818 EATON ELECTRIC Non-standard switch, T0, 20 A, rear mounting, 2 contact uni..

T0-2-SOND*/V/SVB

907818

Y7-907818

EATON - MOELLER

10 Pcs.

Non-standard switch, T0, 20 A, rear mounting, 2 contact unit(s) T0-2-SOND*/V/SVB Eaton Moeller® series T0 Non-standard switch, T0, 20 A, rear mounting, 2 contact unit(s), Emergency switching off function, With red rotary handle and yellow locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T0, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: customized version according to form, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for versatile control applications, the Eaton Moeller T0-2-SOND*/V/SVB non-standard switch provides customized switching configurations for complex industrial control circuits.

Multi-pole rotary switches are typically employed in specialized machine setups to manage operational modes, direct signal pathways, or handle auxiliary power routing within electrical enclosures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Non-standard switch
Catalog Number
907818
Model Code
T0-2-SOND*/V/SVB
Product Length/Depth
128 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.158 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
