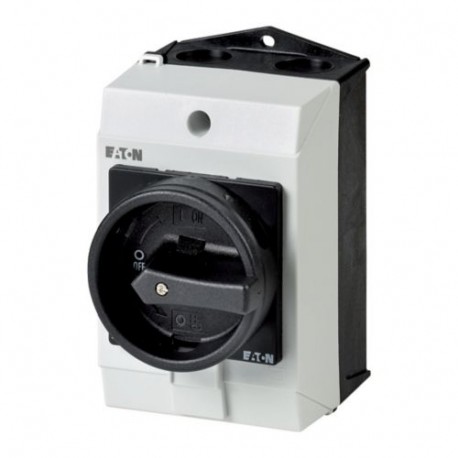

EATON - MOELLER T0-2-SOND*/I1/SVB-SW T0-2-SOND*/I1/SVB-SW 207485 Y7-207485 EATON ELECTRIC Non-standard switch, T0, 20 A, surface mounting, 2 cont.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-SOND*/I1/SVB-SW 207485 Y7-207485 EATON ELECTRIC Non-standard switch, T0, 20 A, surface mounting, 2 cont..

T0-2-SOND*/I1/SVB-SW

207485

Y7-207485

EATON - MOELLER

10 Pcs.

Non-standard switch, T0, 20 A, surface mounting, 2 contact unit(s) T0-2-SOND*/I1/SVB-SW Eaton Moeller® series T0 Non-standard switch, T0, 20 A, surface mounting, 2 contact unit(s), STOP function, With black rotary handle and locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T0, Stop Function: STOP function, With black rotary handle and locking ring, Notes: customized version according to form, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A non-standard switch from Eaton Moeller, part number T0-2-SOND*/I1/SVB-SW 207485 Y7-207485 EATON ELECTRIC Non-standard switch, T0, 20 A, surface mounting, 2 cont.., functions as a specialized control and isolation device for complex electrical circuits. Rotary switches are commonly used within industrial automation to manually direct signal pathways, toggle operational modes, or disconnect specific machinery sections.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Non-standard switch
Catalog Number
207485
Model Code
T0-2-SOND*/I1/SVB-SW
Product Length/Depth
137 mm
Product Height
110 mm
Product Width
80 mm
Product Weight
0.3 kg
Certifications
IEC/EN 60947-3
VDE 0660
IEC/EN 60947
IEC/EN 60204

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
