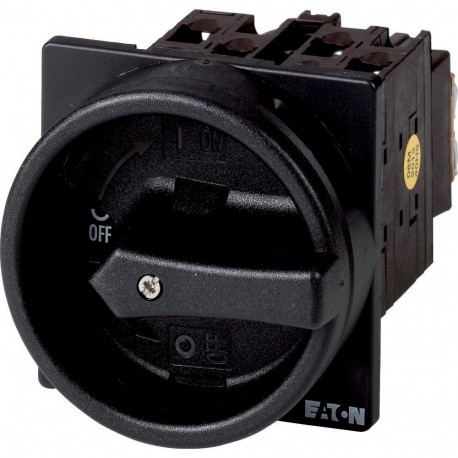

T0-2-SOND*/EA/SVB-SW 908044 Y7-908044 EATON ELECTRIC Non-standard switch, T0, 20 A, flush mounting, 2 contac..
T0-2-SOND*/EA/SVB-SW
908044
Y7-908044
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Configured for specialized setups, the Eaton Moeller T0-2-SOND*/EA/SVB-SW non-standard switch functions as a reliable manual control device for electrical distribution panels and machinery management. Technicians utilize rotary switches of this class to manually direct circuit configurations, handle routine load interruptions, or act as localized disconnects.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
More info
▲General specifications
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
