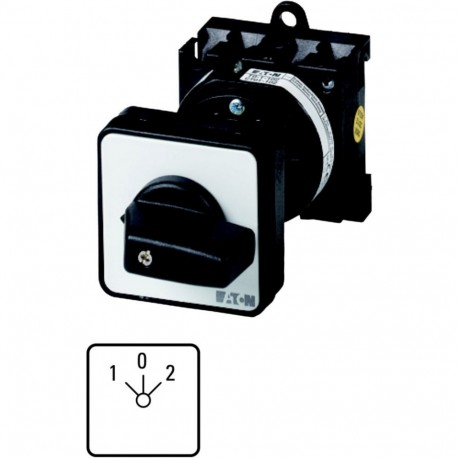

EATON - MOELLER T0-2-99/Z T0-2-99/Z 012253 Y7-12253 EATON ELECTRIC Spring-return switch, Contacts: 4, 20 A, front plate: START 2-0-1 S.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-99/Z 012253 Y7-12253 EATON ELECTRIC Spring-return switch, Contacts: 4, 20 A, front plate: START 2-0-1 S..

T0-2-99/Z

012253

Y7-12253

EATON - MOELLER

1 Pcs.

Spring-return switch, Contacts: 4, 20 A, front plate: START>2-0-1 Switch with 4-pole return 20 A Indicator plate: Eaton Moeller® series T0 Spring-return switch, T0, 20 A, rear mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary/maintained, With 0 (Off) position, with spring-return from both directions, START>2-0-1 Spring-return switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: momentary/maintained, With 0 (Off) position, with spring-return from both directions, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: START>2-0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller spring-return switch (part number T0-2-99/Z) is a specialized rotary control mechanism designed for momentary contact applications, automatically reverting to a baseline state upon release. These components are commonly employed to initiate cycles or trigger temporary operational changes in industrial environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 4
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Spring-return switch
Catalog Number
012253
Model Code
T0-2-99/Z
EAN
4015080122531
Product Length/Depth
128 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.134 kg
Certifications
CE
IEC/EN 60947
UL 60947-4-1
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL File No.: E36332
CSA
CSA File No.: 012528
IEC/EN 60947-3
UL
VDE 0660
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
