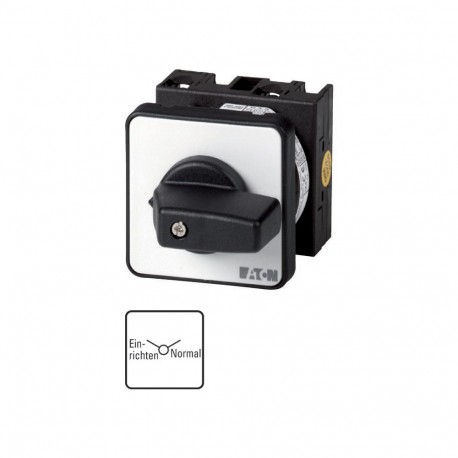

T0-2-8537/E 011937 Y7-11937 EATON ELECTRIC Operation mode switch, Contacts: 4, 20 A, front plate: Einrichten..
T0-2-8537/E
011937
Y7-11937
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller operation mode switch (part number T0-2-8537/E) allows operators to select distinct operational states or functions for industrial equipment during setup and routine execution.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Reverser
- Number of poles (EF001391): 2
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 2
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
UL File No.: E36332
IEC/EN 60204
UL 60947-4-1
CSA-C22.2 No. 94
UL
CSA
IEC/EN 60947
CE
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
CSA File No.: 012528
VDE 0660
