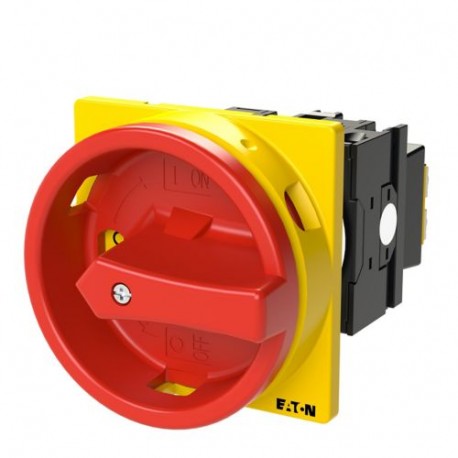

EATON - MOELLER T0-2-8324/EA/SVB T0-2-8324/EA/SVB 098847 Y7-98847 EATON ELECTRIC Main switch, 4 pole, 20 A, Emergency-Stop function, 90 °, fl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8324/EA/SVB 098847 Y7-98847 EATON ELECTRIC Main switch, 4 pole, 20 A, Emergency-Stop function, 90 °, fl..

T0-2-8324/EA/SVB

098847

Y7-98847

EATON - MOELLER

1 Pcs.

Main switch, 4 pole, 20 A, Emergency-Stop function, 90 °, flush mounting General Switch 4 poles 20 A 90° Flush mount Handle Eaton Moeller® series T0 Main switch, T0, 20 A, flush mounting, 2 contact unit(s), 4 pole, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 4 pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-2-8324/EA/SVB is a main switch built to control power delivery and ensure equipment safety during shutdown procedures in automation panels. Multi-pole rotary switches are widely deployed to isolate machinery from mains supplies and prevent unexpected startup.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 500 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 4

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Main switch
Catalog Number
098847
Model Code
T0-2-8324/EA/SVB
EAN
4015080988472
Product Length/Depth
111 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.142 kg
Certifications
UL 60947-4-1
VDE 0660
CSA Class No.: 3211-05
UL
UL File No.: E36332
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
CE
IEC/EN 60947
UL Category Control No.: NLRV
CSA
IEC/EN 60204
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
