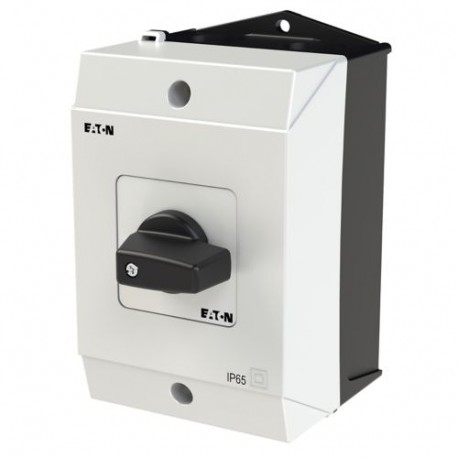

EATON - MOELLER T0-2-8182/I1 T0-2-8182/I1 226793 Y7-226793 EATON ELECTRIC Spring-return switch, Contacts: 4, 20 A, front plate: START 1-0.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8182/I1 226793 Y7-226793 EATON ELECTRIC Spring-return switch, Contacts: 4, 20 A, front plate: START 1-0..

T0-2-8182/I1

226793

Y7-226793

EATON - MOELLER

1 Pcs.

Spring-return switch, Contacts: 4, 20 A, front plate: START>1-0-2 T0-2-8182/I1 Eaton Moeller® series T0 Spring-return switch, T0, 20 A, surface mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary/maintained, With 0 (Off) position, with spring-return from both directions, START>1-0-2 Spring-return switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: IP65, Design: surface mounting, Switching angle: 45 °, Switching performance: momentary/maintained, With 0 (Off) position, with spring-return from both directions, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: START>1-0-2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller spring-return switch (part number T0-2-8182/I1) is housed in a protective enclosure to provide reliable manual control for starting, stopping, and momentary circuit operations in industrial automation setups. Enclosed switches safeguard internal switching elements from environmental contaminants while facilitating operator commands.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 0
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Surface mounted device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): Yes
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Spring-return switch
Catalog Number
226793
Model Code
T0-2-8182/I1
EAN
4015082267933
Product Length/Depth
137 mm
Product Height
102 mm
Product Width
80 mm
Product Weight
0.264 kg
Certifications
IEC/EN 60947-3
VDE 0660
IEC/EN 60947
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
