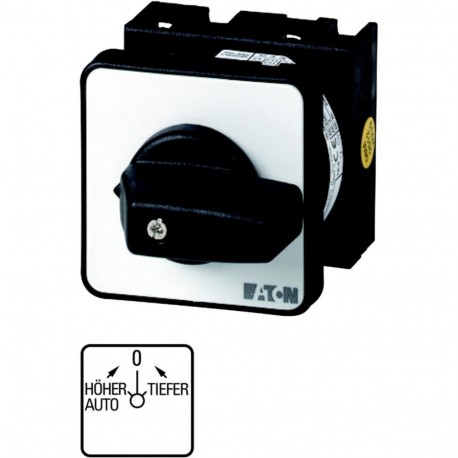

EATON - MOELLER T0-2-8159/E T0-2-8159/E 011675 Y7-11675 EATON ELECTRIC Reversing switches, Contacts: 4, 20 A, front plate: Höher 0 Tiefe.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8159/E 011675 Y7-11675 EATON ELECTRIC Reversing switches, Contacts: 4, 20 A, front plate: Höher 0 Tiefe..

T0-2-8159/E

011675

Y7-11675

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 4, 20 A, front plate: Höher>0 Inverter switch; 4 poles; 20 A; Indicator plate: Höher>0 Eaton Moeller® series T0 Reversing switches, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 4, 45 °, maintained, With 0 (Off) position, with spring-return from both directions to 0, Höher>0 Reversing switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, with spring-return from both directions to 0, front plate: Höher>0

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-2-8159/E is a reversing switch engineered to invert the rotational direction of three-phase electric motors safely. These compact control switches find widespread use in automated machinery, cranes, and material handling lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): On/Off switch
  • Number of poles (EF001391): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Reversing switch
Catalog Number
011675
Model Code
T0-2-8159/E
EAN
4015080116752
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
CSA Class No.: 3211-05
UL 60947-4-1
CE
CSA-C22.2 No. 94
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
IEC/EN 60947
UL
VDE 0660
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
