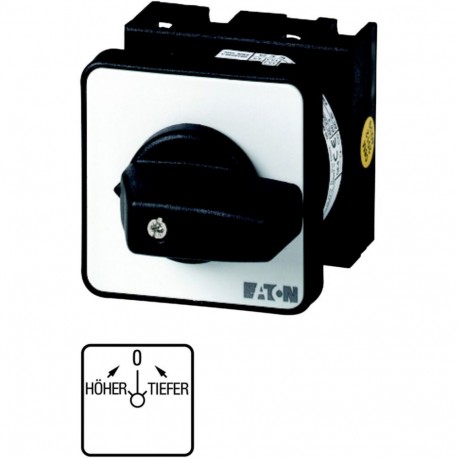

EATON - MOELLER T0-2-8150/EZ T0-2-8150/EZ 011664 Y7-11664 EATON ELECTRIC Reversing switches, Contacts: 3, 20 A, front plate: Höher 0 Tief.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8150/EZ 011664 Y7-11664 EATON ELECTRIC Reversing switches, Contacts: 3, 20 A, front plate: Höher 0 Tief..

T0-2-8150/EZ

011664

Y7-11664

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 3, 20 A, front plate: Höher>0 Inverter switch; 3 poles; 20 A; Indicator plate: Höher>0 Eaton Moeller® series T0 Reversing switches, T0, 20 A, center mounting, 2 contact unit(s), Contacts: 3, 45 °, maintained, With 0 (Off) position, with spring-return from both directions to 0, Höher>0 Reversing switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, with spring-return from both directions to 0, front plate: Höher>0

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-2-8150/EZ reversing switch enables precise manual direction control and operational mode selection in motor-driven systems. Such selector switches are essential components in control panels, allowing technicians to toggle equipment functions safely across various industrial processes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): On/Off switch
  • Number of poles (EF001391): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Reversing switch
Catalog Number
011664
Model Code
T0-2-8150/EZ
EAN
4015080116646
Product Length/Depth
106 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.124 kg
Certifications
CE
CSA File No.: 012528
CSA-C22.2 No. 94
UL 60947-4-1
CSA
CSA Class No.: 3211-05
UL
UL Category Control No.: NLRV
VDE 0660
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
IEC/EN 60204
UL File No.: E36332
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
