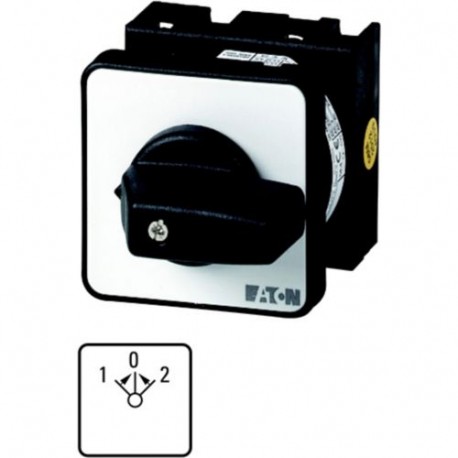

EATON - MOELLER T0-2-8120/EZ T0-2-8120/EZ 011658 Y7-11658 EATON ELECTRIC Revolving contact, Contacts: 4, 20 A, front plate: 1 0 2, 45 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8120/EZ 011658 Y7-11658 EATON ELECTRIC Revolving contact, Contacts: 4, 20 A, front plate: 1 0 2, 45 °, ..

T0-2-8120/EZ

011658

Y7-11658

EATON - MOELLER

1 Pcs.

Revolving contact, Contacts: 4, 20 A, front plate: 1>0<2, 45 °, momentary, centre mounting Rocker switch; 4 poles; 20 A; Indicator plate: 1>0<2; 45 °; Eaton Moeller® series T0 Revolving contact, T0, 20 A, center mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary, With 0 (Off) position, with spring-return from both directions to 0, 1>0<2, Design number 8120 Revolving contact, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1>0<2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A revolving contact switch from Eaton Moeller, part number T0-2-8120/EZ, is built to reroute current directions and manage circuit configurations in industrial control panels. Operators use these components to manually switch equipment operating paths as required by the application.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Accessory Revolving contact
Catalog Number
011658
Model Code
T0-2-8120/EZ
EAN
4015080116585
Product Length/Depth
106 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.124 kg
Certifications
CSA File No.: 012528
IEC/EN 60204
UL 60947-4-1
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
UL
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CE
VDE 0660
UL File No.: E36332
CSA
IEC/EN 60947
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
