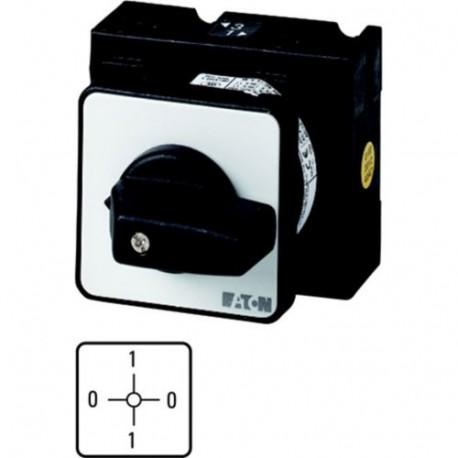

EATON - MOELLER T0-2-8060/E T0-2-8060/E 095796 Y7-95796 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: 0-1-0-1, 90 °.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8060/E 095796 Y7-95796 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: 0-1-0-1, 90 °..

T0-2-8060/E

095796

Y7-95796

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 20 A, front plate: 0-1-0-1, 90 °, maintained, flush mounting Switch 4-pole switch 20 A Indicator plate: 0-1-0-1 90° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 4, 90 °, maintained, With 0 (Off) position, 0-1-0-1, Design number 8060 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-1-0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built-in changeoverswitches, such as the Eaton Moeller T0-2-8060/E, enable manual toggling between alternative circuit paths or power sources in industrial electrical installations.

These rotary cam switches are deployed in control desks and switchgear to safely manage directional signals and dual-source feeds. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
095796
Model Code
T0-2-8060/E
EAN
4015080957966
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
IEC/EN 60947-3
CE
CSA Class No.: 3211-05
VDE 0660
CSA-C22.2 No. 94
IEC/EN 60947
CSA
UL 60947-4-1
UL File No.: E36332
CSA File No.: 012528
UL
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
