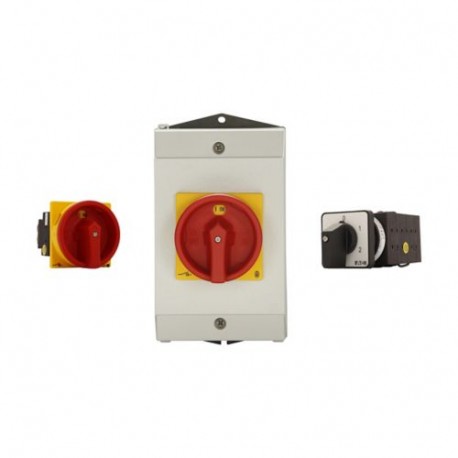

EATON - MOELLER T0-2-15907/I1/SVA(C,E,G-J) T0-2-15907/I1/SVA(C,E,G-J) 207096 Y7-207096 EATON ELECTRIC Changeoverswitches, 4 pole, 20 A, Cylinder lock S.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15907/I1/SVA(C,E,G-J) 207096 Y7-207096 EATON ELECTRIC Changeoverswitches, 4 pole, 20 A, Cylinder lock S..

T0-2-15907/I1/SVA(C,E,G-J)

207096

Y7-207096

EATON - MOELLER

1 Pcs.

Changeoverswitches, 4 pole, 20 A, Cylinder lock SVA, front plate AUTO-0-HAND T0-2-15907/I1/SVA(C,E,G-J) Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, surface mounting, 4 pole, with black thumb grip and front plate, Cylinder lock SVA Changeover switch, Product range: Switch with locking mechanism, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, with two keys, 4 pole, Cylinder lock SVA, Locking facility: Lockable in position 0 with cover interlock, Degree of Protection: IP65, Design: surface mounting, Switching angle: 45 °, Switching performance: momentary/maintained, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, Notes: If the key is withdrawn in HAND position, START can be actuated without the key, but not 0., front plate: AUTO-0-HAND

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
207096
Model Code
T0-2-15907/I1/SVA(C,E,G-J)
EAN
4015082070960
Product Length/Depth
137 mm
Product Height
102 mm
Product Width
80 mm
Product Weight
0.408 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
IEC/EN 60204

ETIM for 207096 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) Reverser
Number of poles (EF001391) 4
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated permanent current Iu (EF001389) 20 A
Number of switch positions (EF000231) 4
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Device construction (EF008240) Surface mounted device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) Yes
Suitable for front mounting (EF007246) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) Yes
Type of control element (EF006976) Toggle
Front shield size (EF007176) 48x48 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
