> EATON - MOELLER > Disconnectors and Cam Switches > 050979

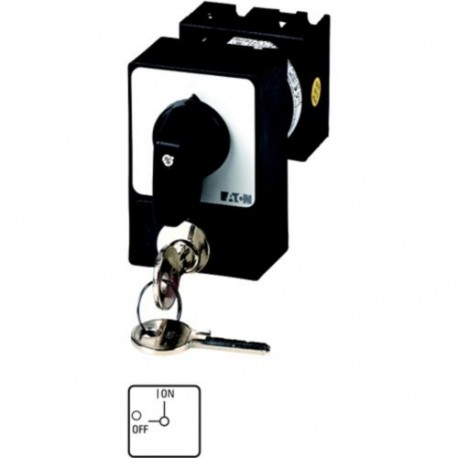

EATON - MOELLER T0-2-15907/E/SVA(C,E,G-J) T0-2-15907/E/SVA(C,E,G-J) 050979 Y7-50979 EATON ELECTRIC Changeoverswitches, 4 pole, 20 A, Cylinder lock SVA.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15907/E/SVA(C,E,G-J) 050979 Y7-50979 EATON ELECTRIC Changeoverswitches, 4 pole, 20 A, Cylinder lock SVA..

T0-2-15907/E/SVA(C,E,G-J)

050979

Y7-50979

EATON - MOELLER

1 Pcs.

Changeoverswitches, 4 pole, 20 A, Cylinder lock SVA, front plate AUTO-0-HAND Switch 4-pole switch 20 A Cylindrical lock SVA Plate Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 4 pole, with black thumb grip and front plate, Cylinder lock SVA Changeover switch, Product range: Switch with locking mechanism, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, with two keys, 4 pole, Cylinder lock SVA, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary/maintained, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, Notes: If the key is withdrawn in HAND position, START can be actuated without the key, but not 0., front plate: AUTO-0-HAND

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
050979
Model Code
T0-2-15907/E/SVA(C,E,G-J)
EAN
4015080509790
Product Length/Depth
131 mm
Product Height
73 mm
Product Width
49 mm
Product Weight
0.239 kg
Certifications
IEC/EN 60204
IEC/EN 60947-3
VDE 0660
IEC/EN 60947

ETIM for 050979 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) Reverser
Number of poles (EF001391) 4
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated permanent current Iu (EF001389) 20 A
Number of switch positions (EF000231) 4
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 48x48 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
