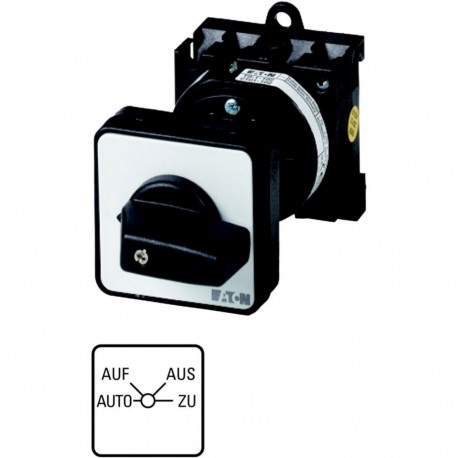

T0-2-15503/Z 011446 Y7-11446 EATON ELECTRIC Operation mode switch, Contacts: 4, 20 A, front plate: Auto-Auf-..
T0-2-15503/Z
011446
Y7-11446
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller T0-2-15503/Z operation mode switch acts as a multi-position selector utilized to change machine states, operational cycles, or signal paths within heavy-duty electrical architectures. Industrial control panels depend on these robust changeover mechanisms to ensure operators can safely alternate between distinct functional configurations.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Reverser
- Number of poles (EF001391): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 4
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): Yes
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
CSA-C22.2 No. 94
IEC/EN 60204
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
UL
UL 60947-4-1
UL File No.: E36332
IEC/EN 60947-3
CE
CSA
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
