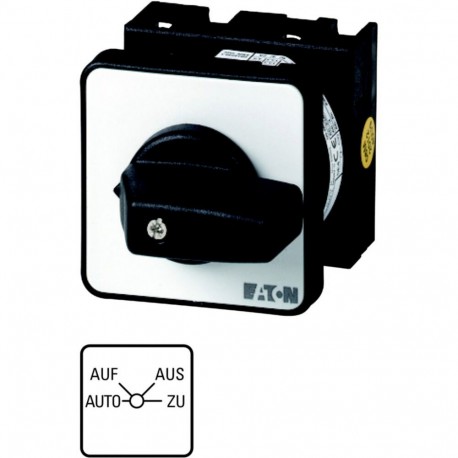

EATON - MOELLER T0-2-15503/EZ T0-2-15503/EZ 011442 Y7-11442 EATON ELECTRIC Operation mode switch, Contacts: 4, 20 A, front plate: Auto-Auf.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15503/EZ 011442 Y7-11442 EATON ELECTRIC Operation mode switch, Contacts: 4, 20 A, front plate: Auto-Auf..

T0-2-15503/EZ

011442

Y7-11442

EATON - MOELLER

1 Pcs.

Operation mode switch, Contacts: 4, 20 A, front plate: Auto-Auf-Aus-Zu, 60 °, maintained, centre mounting Control switch 4 poles 20 A Indicator plate: Auto-Auf-Aus-Zu Eaton Moeller® series T0 Operation mode switch, T0, 20 A, center mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, Without 0 (Off) position, Auto-Auf-Aus-Zu, Design number 15503 Operation mode switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, Without 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: Auto-Auf-Aus-Zu

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller operation mode switch (part number T0-2-15503/EZ) functions as a robust changeover device designed to toggle between distinct system settings or operational states in electrical networks.

These components are commonly implemented in industrial automation gear and control panels to dictate system behavior reliably. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 4
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Operation mode switch
Catalog Number
011442
Model Code
T0-2-15503/EZ
EAN
4015080114420
Product Length/Depth
106 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.124 kg
Certifications
CSA Class No.: 3211-05
CSA-C22.2 No. 94
CE
CSA
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
UL
UL Category Control No.: NLRV
VDE 0660
CSA File No.: 012528
UL File No.: E36332
IEC/EN 60947-3
UL 60947-4-1
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
