> EATON - MOELLER > Disconnectors and Cam Switches > 011441

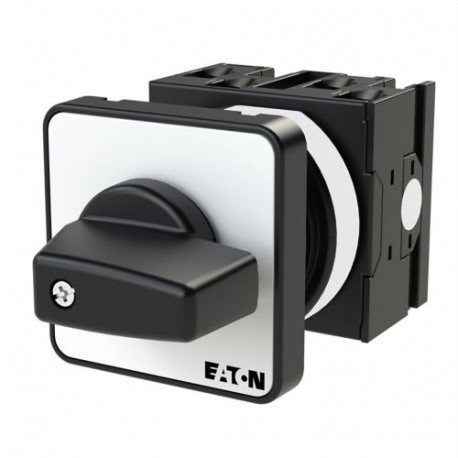

EATON - MOELLER T0-2-15503/E T0-2-15503/E 011441 Y7-11441 EATON ELECTRIC Operation mode switch, Contacts: 4, 20 A, front plate: Auto-Auf-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15503/E 011441 Y7-11441 EATON ELECTRIC Operation mode switch, Contacts: 4, 20 A, front plate: Auto-Auf-..

T0-2-15503/E

011441

Y7-11441

EATON - MOELLER

1 Pcs.

Operation mode switch, Contacts: 4, 20 A, front plate: Auto-Auf-Aus-Zu, 60 °, maintained, flush mounting Control switch 4 poles 20 A Indicator plate: Auto-Auf-Aus-Zu Eaton Moeller® series T0 Operation mode switch, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, Without 0 (Off) position, Auto-Auf-Aus-Zu, Design number 15503

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Operation mode switch
Catalog Number
011441
Model Code
T0-2-15503/E
EAN
4015080114413
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
UL
VDE 0660
CE
UL File No.: E36332
CSA Class No.: 3211-05
CSA File No.: 012528
UL 60947-4-1
IEC/EN 60204
CSA
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
CSA-C22.2 No. 94
IEC/EN 60947
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
