T0-2-15452/I1 207092 Y7-207092 EATON ELECTRIC Changeoverswitches, Contacts: 4, 20 A, front plate: HAND-AUTO,..
T0-2-15452/I1
207092
Y7-207092
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

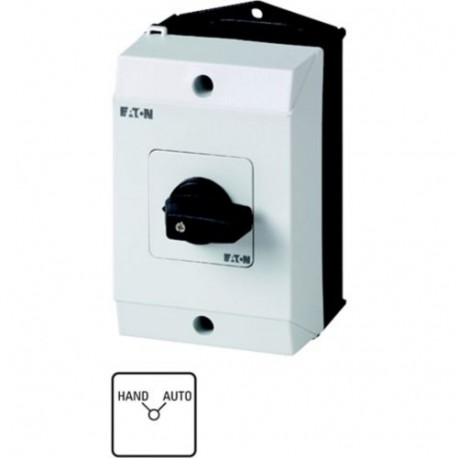

The Eaton Moeller T0-2-15452/I1 changeoverswitch is housed in a dedicated surface-mounted enclosure designed to toggle control modes like manual and automatic operation. Surface-mounted changeover switches protect internal electrical contacts while giving operators secure exterior access to machine states.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Reverser
- Number of poles (EF001391): 2
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 2
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Surface mounted device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): Yes
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
