View larger
Images are for illustrative purposes only. Please refer to data sheet for details

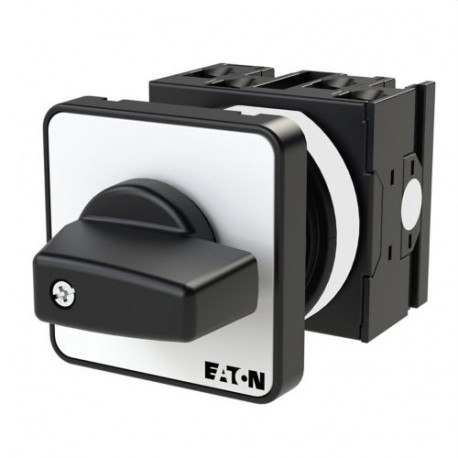

T0-2-15435/E 003191 Y7-3191 EATON ELECTRIC Changeoverswitches, Contacts: 4, With spring-return from HAND, 20..
T0-2-15435/E
003191
Y7-3191
EATON - MOELLER
1 Pcs.
Changeoverswitches, Contacts: 4, With spring-return from HAND, 20 A, front plate: HAND>0-AUTO, 45 °, momentary/maintained, flush mounting
4 Pole Switch With Return From Hand 20 To Plate
Eaton Moeller® series T0 Changeover switches, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 4, With spring-return from HAND, 45 °, momentary/maintained, HAND>0-AUTO, Design number 15435
Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Spring-return: With spring-return from HAND, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary/maintained, With 0 (Off) position, With spring-return to 0, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: HAND>0-AUTO
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
003191
Model Code
T0-2-15435/E
EAN
4015080031918
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
IEC/EN 60947
VDE 0660
CSA File No.: 012528
IEC/EN 60947-3
CSA-C22.2 No. 94
CE
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
UL Category Control No.: NLRV
UL File No.: E36332
CSA
IEC/EN 60204
UL
UL 60947-4-1
VDE 0660
CSA File No.: 012528
IEC/EN 60947-3
CSA-C22.2 No. 94
CE
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
UL Category Control No.: NLRV
UL File No.: E36332
CSA
IEC/EN 60204
UL
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
| Feature Name | Feature Value |
|---|---|
| Type of switch (EF003496) | Reverser |
| Number of poles (EF001391) | 2 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated permanent current Iu (EF001389) | 20 A |
| Number of switch positions (EF000231) | 3 |
| With zero (off) position (EF001416) | Yes |
| With retraction in 0-position (EF002428) | Yes |
| Device construction (EF008240) | Built-in device |
| Width in number of modular spacings (EF002950) | 0 |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Complete device in housing (EF007317) | No |
| Type of control element (EF006976) | Toggle |
| Front shield size (EF007176) | 48x48 mm |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA), front side (EF011961) | 12 |
