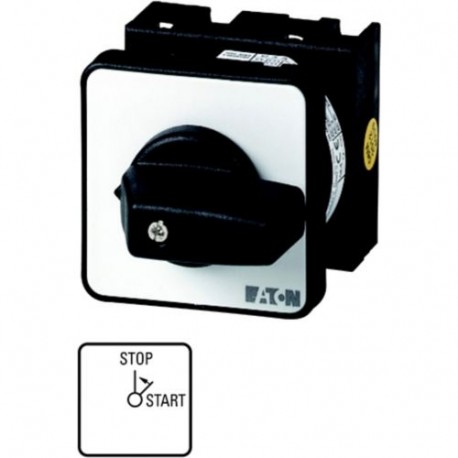

EATON - MOELLER T0-2-15313/E T0-2-15313/E 011334 Y7-11334 EATON ELECTRIC On switches, Contacts: 3, 20 A, front plate: STOP START, 45 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15313/E 011334 Y7-11334 EATON ELECTRIC On switches, Contacts: 3, 20 A, front plate: STOP START, 45 °, m..

T0-2-15313/E

011334

Y7-11334

EATON - MOELLER

1 Pcs.

On switches, Contacts: 3, 20 A, front plate: STOP 3-pole gear switch 20 A Indicator plate: STOP Eaton Moeller® series T0 On switches, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 3, 45 °, momentary, Without 0 (Off) position, With spring-return to STOP, STOP On switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary, Without 0 (Off) position, With spring-return to STOP, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: STOP

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

On switches from Eaton Moeller, represented by part number T0-2-15313/E, serve as reliable manual disconnect and control devices for industrial machinery and automation circuits. These panel-mounted units allow operators to safely open or close main power paths during standard operation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On switch
Catalog Number
011334
Model Code
T0-2-15313/E
EAN
4015080113348
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
CSA Class No.: 3211-05
UL Category Control No.: NLRV
UL 60947-4-1
CE
CSA File No.: 012528
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
CSA-C22.2 No. 94
UL
CSA
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
