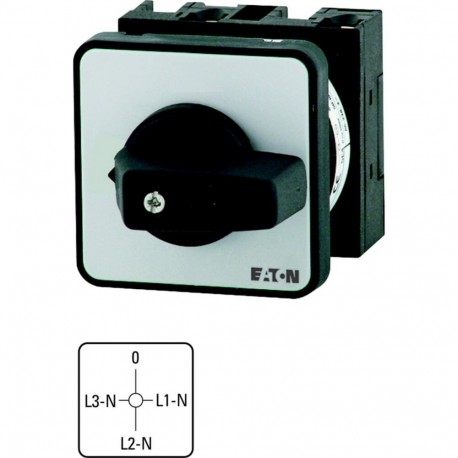

EATON - MOELLER T0-2-15177/E T0-2-15177/E 011314 Y7-11314 EATON ELECTRIC Voltmeter selector switches, Contacts: 4, 20 A, 3 x phase-N, fro.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15177/E 011314 Y7-11314 EATON ELECTRIC Voltmeter selector switches, Contacts: 4, 20 A, 3 x phase-N, fro..

T0-2-15177/E

011314

Y7-11314

EATON - MOELLER

1 Pcs.

Voltmeter selector switches, Contacts: 4, 20 A, 3 x phase-N, front plate: 0-L1/N L2/N L3/N, 90 °, maintained, flush mounting Voltmeter Selector Switch 4 Pole 20 A 3 x Phase-Neutral Plate Eaton Moeller® series T0 Voltmeter selector switches, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 4, 90 °, maintained, With 0 (Off) position, 0-L1/N L2/N L3/N, Design number 15177 Cam switch according to IEC/EN60947, size T0, installation form, front plate 48x48, degree of protection Front IP65 with black thumb grip, rated uninterrupted current Iu 20A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T. General designs: insulation-material add-on housing, flush mounting, center mounting, rear mounting IVS service distribution board mounting.

Automation > Voltmeter selector switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Front-installed monitoring hardware like the Eaton Moeller T0-2-15177/E voltmeter selector switch provides manual phase-to-neutral measurements on electrical control boards. Plant engineers utilize these selector switches to safely cycle through various circuit potentials during routine electrical maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Measurement between phases possible (EF001145): No
  • With zero (off) position (EF001416): Yes
  • Device construction (EF008240): Front installation
  • Modular version (EF001126): No
  • With control element (EF001538): Yes
  • Degree of protection (IP) (EF005474): IP65
  • Degree of protection (NEMA) (EF011959): 12

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Voltmeter selector switch
Catalog Number
011314
Model Code
T0-2-15177/E
EAN
4015080113140
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
IEC/EN 60204
CE
CSA
CSA Class No.: 3211-05
UL Category Control No.: NLRV
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
VDE 0660
IEC/EN 60947
IEC/EN 60947-3
CSA File No.: 012528
UL File No.: E36332
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
