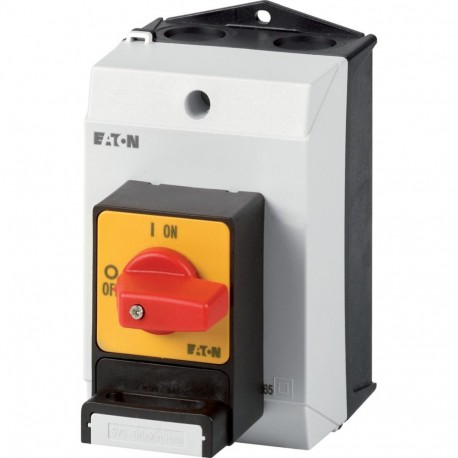

EATON - MOELLER T0-2-1/I1/SVC(S)-RT T0-2-1/I1/SVC(S)-RT 207086 Y7-207086 EATON ELECTRIC Panic switches, 3 pole, 20 A, Padlocking feature SVC, fr.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-1/I1/SVC(S)-RT 207086 Y7-207086 EATON ELECTRIC Panic switches, 3 pole, 20 A, Padlocking feature SVC, fr..

T0-2-1/I1/SVC(S)-RT

207086

Y7-207086

EATON - MOELLER

1 Pcs.

Panic switches, 3 pole, 20 A, Padlocking feature SVC, front plate 0-1, 90 °, maintained, surface mounting, P T0-2-1/I1/SVC(S)-RT Eaton Moeller® series T0 Panic switches, T0, 20 A, surface mounting, 3 pole, with red thumb grip and yellow front plate, Padlocking feature SVC Panic switch, Product range: Switch with locking mechanism, Part group reference: T0, Stop Function: Emergency switching off function, with red thumb grip and yellow front plate, 3 pole, locking arrangement: Padlocking feature SVC, Notes: Lockable with max. 3 padlocks., If the locking slide is interlocked with lock in position 1 the switch can be switched off but not on again without removing the lock., Locking facility: Lockable in position 0 with cover interlock, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW , Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-2-1/I1/SVC(S)-RT is a panic switch equipped with padlocking features and an emergency stop configuration for rapid safety intervention. Such enclosure-mounted switches are typically positioned prominently in manufacturing plants to halt hazardous machinery movements immediately. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Version as switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Panic switch
Catalog Number
207086
Model Code
T0-2-1/I1/SVC(S)-RT
EAN
4015082070861
Product Length/Depth
137 mm
Product Height
102 mm
Product Width
80 mm
Product Weight
0.335 kg
Certifications
IEC/EN 60204
IEC/EN 60947-3
VDE 0660
IEC/EN 60947

Product Datasheet
