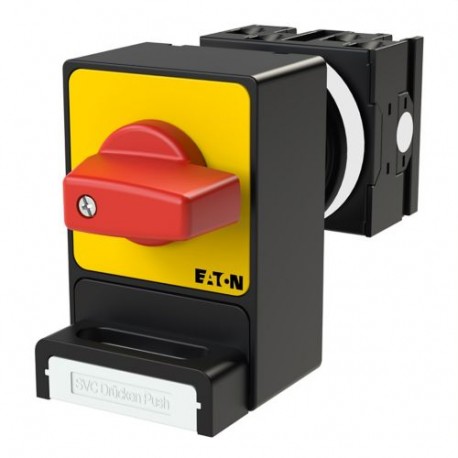

EATON - MOELLER T0-2-1/E/SVC(S)-RT T0-2-1/E/SVC(S)-RT 044973 Y7-44973 EATON ELECTRIC Panic switches, 3 pole, 20 A, Padlocking feature SVC, fron.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-1/E/SVC(S)-RT 044973 Y7-44973 EATON ELECTRIC Panic switches, 3 pole, 20 A, Padlocking feature SVC, fron..

T0-2-1/E/SVC(S)-RT

044973

Y7-44973

EATON - MOELLER

1 Pcs.

Panic switches, 3 pole, 20 A, Padlocking feature SVC, front plate 0-1, 90 °, maintained, flush mounting, P Panic Switch 3 Pole 20 A Padlock Lock SVC Plate Panic switches, T0, 20 A, flush mounting, 3 pole, with red thumb grip and yellow front plate, Padlocking feature SVC Panic switch, Product range: Switch with locking mechanism, Part group reference: T0, Stop Function: Emergency switching off function, with red thumb grip and yellow front plate, 3 pole, locking arrangement: Padlocking feature SVC, Notes: Lockable with max. 3 padlocks., If the locking slide is interlocked with lock in position 1 the switch can be switched off but not on again without removing the lock., Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW , Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller panic switch acts as an essential safety mechanism in industrial workspaces, giving operators immediate physical access to halt machinery in emergency situations. These specialized switches are deployed across automated production lines to comply with workplace safety regulations and protect personnel.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 3

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Panic switch
Catalog Number
044973
Model Code
T0-2-1/E/SVC(S)-RT
EAN
4015080449737
Product Length/Depth
173 mm
Product Height
73 mm
Product Width
49 mm
Product Weight
0.23 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
