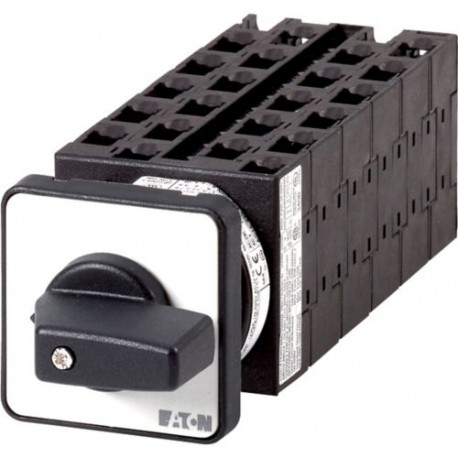

EATON - MOELLER T0-11-8375/E T0-11-8375/E 010951 Y7-10951 EATON ELECTRIC Changeoverswitches, Contacts: 22, 20 A, front plate: 1-2, 90 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-11-8375/E 010951 Y7-10951 EATON ELECTRIC Changeoverswitches, Contacts: 22, 20 A, front plate: 1-2, 90 °, ..

T0-11-8375/E

010951

Y7-10951

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 22, 20 A, front plate: 1-2, 90 °, maintained, flush mounting Switch Switch 2 pole2 20 A Indicator plate: 1-2 90° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 11 contact unit(s), Contacts: 22, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8375 Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 22, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 11 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller changeover switch part number T0-11-8375/E directs electrical currents between multiple alternative circuits within complex control panel architectures. Engineers utilize changeover configurations to manually reroute power feeds or alternate control signals during operation. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 11
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
010951
Model Code
T0-11-8375/E
EAN
4015080109518
Product Length/Depth
171 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.339 kg
Certifications
CE
CSA-C22.2 No. 94
IEC/EN 60947-3
UL Category Control No.: NLRV
IEC/EN 60204
CSA Class No.: 3211-05
UL
IEC/EN 60947
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CSA
UL 60947-4-1
CSA File No.: 012528
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
