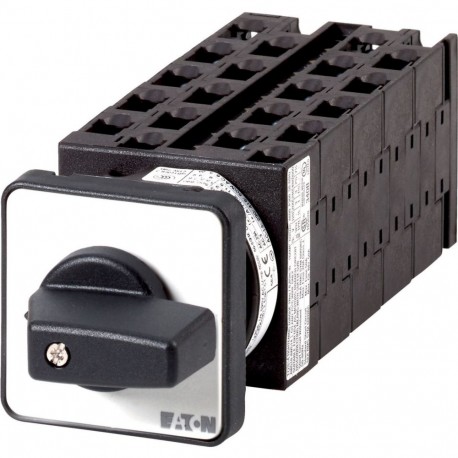

EATON - MOELLER T0-10-SOND*/E T0-10-SOND*/E 907774 Y7-907774 EATON ELECTRIC Non-standard switch, T0, 20 A, flush mounting, 10 contact unit.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-10-SOND*/E 907774 Y7-907774 EATON ELECTRIC Non-standard switch, T0, 20 A, flush mounting, 10 contact unit..

T0-10-SOND*/E

907774

Y7-907774

EATON - MOELLER

10 Pcs.

Non-standard switch, T0, 20 A, flush mounting, 10 contact unit(s) T0-10-SOND*/E Eaton Moeller® series T0 Non-standard switch, T0, 20 A, flush mounting, 10 contact unit(s) Non-standard switch, Product range: Non-standard switch, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, customized version according to form, Degree of Protection: Front IP65, Design: flush mounting, 10 contact unit(s), Rated uninterrupted current: Iu= 20 A

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A non-standard switch is a specialized manual control component integrated into electrical distribution boards and machinery to handle custom circuit switching requirements. This Eaton Moeller T0-10-SOND*/E model supports specific load management tasks with flush mounting capabilities. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of poles (EF001391): 0
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 0
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm
  • Degree of protection (IP), front side (EF003118): IP65

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Non-standard switch
Catalog Number
907774
Model Code
T0-10-SOND*/E
Product Length/Depth
162 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.274 kg
Certifications
IEC/EN 60204
VDE 0660
IEC/EN 60947-3
IEC/EN 60947

Product Datasheet
