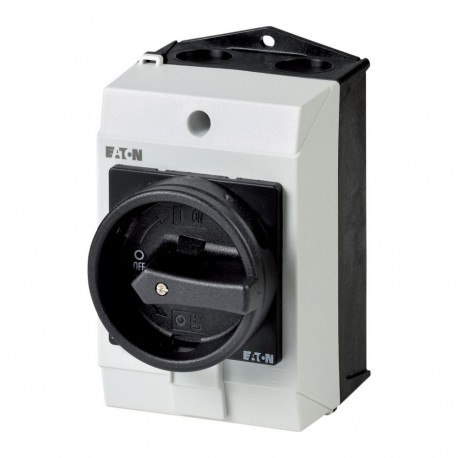

EATON - MOELLER T0-1-SOND*/I1/SVB-SW T0-1-SOND*/I1/SVB-SW 207482 Y7-207482 EATON ELECTRIC Non-standard switch, T0, 20 A, surface mounting, 1 cont.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-SOND*/I1/SVB-SW 207482 Y7-207482 EATON ELECTRIC Non-standard switch, T0, 20 A, surface mounting, 1 cont..

T0-1-SOND*/I1/SVB-SW

207482

Y7-207482

EATON - MOELLER

10 Pcs.

Non-standard switch, T0, 20 A, surface mounting, 1 contact unit(s) T0-1-SOND*/I1/SVB-SW Eaton Moeller® series T0 Non-standard switch, T0, 20 A, surface mounting, 1 contact unit(s), STOP function, With black rotary handle and locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T0, Stop Function: STOP function, With black rotary handle and locking ring, Notes: customized version according to form, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for surface-mounted industrial control applications, this versatile switch functions reliably as both a main and maintenance disconnect. Technicians utilize surface-mounted switching units to provide accessible local isolation directly on machine frames and structural walls. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Non-standard switch
Catalog Number
207482
Model Code
T0-1-SOND*/I1/SVB-SW
Product Length/Depth
137 mm
Product Height
110 mm
Product Width
80 mm
Product Weight
0.29 kg
Certifications
IEC/EN 60204
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
