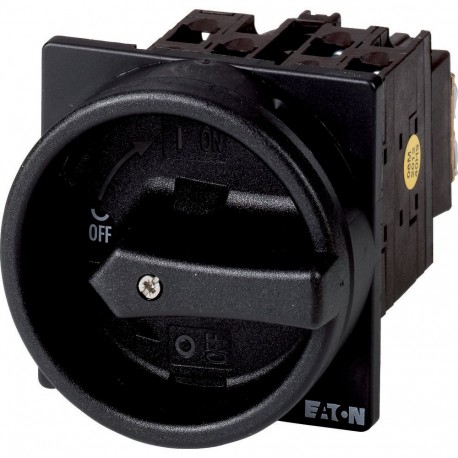

T0-1-SOND*/EA/SVB-SW 908043 Y7-908043 EATON ELECTRIC Non-standard switch, T0, 20 A, flush mounting, 1 contac..
T0-1-SOND*/EA/SVB-SW
908043
Y7-908043
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller T0-1-SOND*/EA/SVB-SW is a non-standard 20 A flush-mounting switch engineered for specialized control panel configurations.
Custom cam switches and disconnectors allow engineers to implement unique switching logic in complex automation systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
More info
▲General specifications
IEC/EN 60947-3
IEC/EN 60204
VDE 0660
