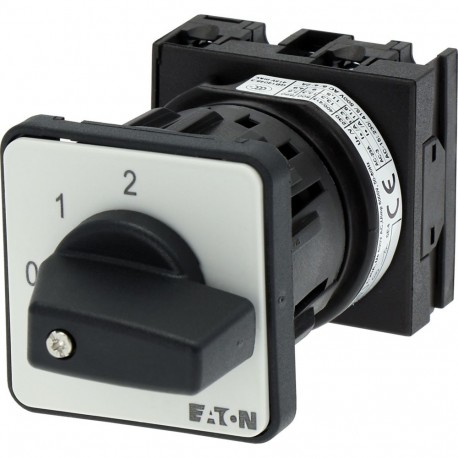

T0-1-8310/EZ 009775 Y7-9775 EATON ELECTRIC Step switches, Contacts: 2, 20 A, front plate: 0-2, 45 °, maintai..
T0-1-8310/EZ
009775
Y7-9775
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
T0-1-8310/EZ 009775 Y7-9775 EATON ELECTRIC Step switches, Contacts: 2, 20 A, front plate: 0-2, 45 °, maintai.. is a step switch built to manage sequential circuit switching in control cabinets and machinery distribution systems. Operators rely on step switches to manually select predetermined operating modes or auxiliary device stages. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch: Level switch
- Number of poles: 1
- Max. rated operation voltage Ue AC: 690 V
- Rated permanent current Iu: 20 A
- Number of switch positions: 3
- With zero (off) position: Yes
- With retraction in 0-position: No
- Device construction: Built-in device
- Width in number of modular spacings: 0
- Suitable for floor mounting: No
- Suitable for front mounting: Yes
- Suitable for distribution board installation: No
- Suitable for intermediate mounting: No
- Complete device in housing: No
- Type of control element: Toggle
- Front shield size: 48x48 mm
More info
▲General specifications
CE
IEC/EN 60947
UL 60947-4-1
IEC/EN 60947-3
CSA
UL
VDE 0660
CSA File No.: 012528
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL Category Control No.: NLRV
UL File No.: E36332
