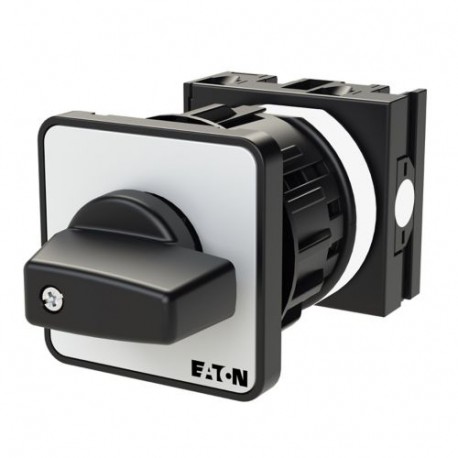

EATON - MOELLER T0-1-8201/EZ T0-1-8201/EZ 009477 Y7-9477 EATON ELECTRIC ON-OFF switches, Contacts: 2, 20 A, front plate: 0-1, 60 °, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-8201/EZ 009477 Y7-9477 EATON ELECTRIC ON-OFF switches, Contacts: 2, 20 A, front plate: 0-1, 60 °, maint..

T0-1-8201/EZ

009477

Y7-9477

EATON - MOELLER

1 Pcs.

ON-OFF switches, Contacts: 2, 20 A, front plate: 0-1, 60 °, maintained, centre mounting ON-OFF 2-pole disconnector switch 20 A Indicator plate: 0-1 60 Eaton Moeller® series T0 ON-OFF switches, T0, 20 A, center mounting, 1 contact unit(s), Contacts: 2, 60 °, maintained, With 0 (Off) position, 0-1, Design number 8201 On-Off switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller Step switches, designated as TM-5-8281/E, are compact rotary selector units utilized in light industrial environments for multi-step process control and circuit programming. These switches allow operators to cycle through discrete operational stages with high precision in confined panel spaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
009477
Model Code
T0-1-8201/EZ
EAN
4015080094777
Product Length/Depth
96 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.101 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
UL
IEC/EN 60947-3
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60204
CE
CSA Class No.: 3211-05
UL Category Control No.: NLRV
CSA
VDE 0660
IEC/EN 60947
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
