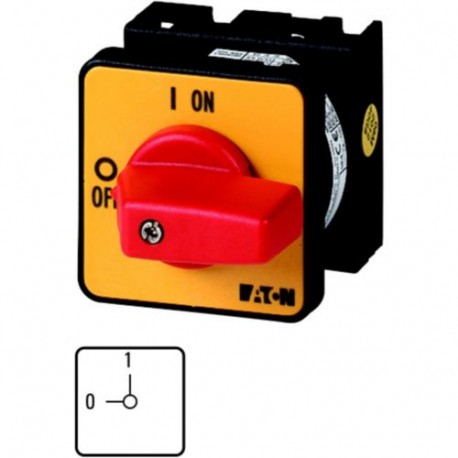

T0-1-8200/E-RT 009474 Y7-9474 EATON ELECTRIC On-Off switch, 1 pole, 20 A, Emergency-Stop function, 90 °, flu..
T0-1-8200/E-RT
009474
Y7-9474
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
T0-1-8200/E-RT Eaton Moeller on-off switch is a single-pole electrical component equipped with an emergency-stop function for machinery safety circuits. Panel builders integrate such devices to safely disconnect electrical loads and prevent accidental startup in industrial control environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Number of poles (EF001391): 1
More info
▲General specifications
UL File No.: E36332
CSA
IEC/EN 60947
CE
UL
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
VDE 0660
CSA File No.: 012528
IEC/EN 60204
UL 60947-4-1
IEC/EN 60947-3
