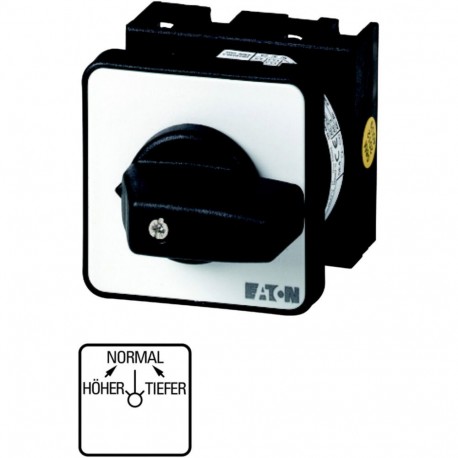

EATON - MOELLER T0-1-8185/EZ T0-1-8185/EZ 009469 Y7-9469 EATON ELECTRIC Reversing switches, Contacts: 2, 20 A, front plate: Höher Normal .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-8185/EZ 009469 Y7-9469 EATON ELECTRIC Reversing switches, Contacts: 2, 20 A, front plate: Höher Normal ..

T0-1-8185/EZ

009469

Y7-9469

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 2, 20 A, front plate: Höher>Normal Inverter switch 2 poles 20 A Indicator plate: Eaton Moeller® series T0 Reversing switches, T0, 20 A, center mounting, 1 contact unit(s), Contacts: 2, 45 °, momentary, Without 0 (Off) position, With spring-return from both directions to NORMAL, Höher>Normal Reversing switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: momentary, Without 0 (Off) position, With spring-return from both directions to NORMAL, front plate: Höher>Normal

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-1-8185/EZ reversing switch provides dependable on/off switching capabilities for simpler electrical circuit management in control panels. These compact devices are routinely applied to disconnect auxiliary equipment or manage localized power feeds safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): On/Off switch
  • Number of poles (EF001391): 1
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP55
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Reversing switch
Catalog Number
009469
Model Code
T0-1-8185/EZ
EAN
4015080094692
Product Length/Depth
96 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.101 kg
Certifications
VDE 0660
CSA-C22.2 No. 94
IEC/EN 60204
IEC/EN 60947
CE
UL Category Control No.: NLRV
IEC/EN 60947-3
UL File No.: E36332
CSA Class No.: 3211-05
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
CSA
UL
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
