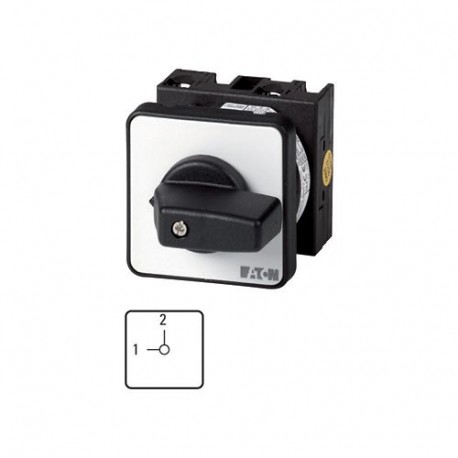

EATON - MOELLER T0-1-15441/EZ T0-1-15441/EZ 009283 Y7-9283 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: 1-2, 90 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15441/EZ 009283 Y7-9283 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: 1-2, 90 °, m..

T0-1-15441/EZ

009283

Y7-9283

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 20 A, front plate: 1-2, 90 °, maintained, centre mounting Switch 2-pole switch 20 A Indicator plate: 1-2 90° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, centre mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 15441 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1-2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

T0-1-15441/EZ 009283 Y7-9283 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: 1-2, 90 °, m.. is a changeover switch designed for redirecting electrical paths between alternative circuits or power sources in industrial setups. Rotary changeover components allow operators to manually shift operational pathways safely under load. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch: Reverser
  • Number of poles: 1
  • Max. rated operation voltage Ue AC: 690 V
  • Rated permanent current Iu: 20 A
  • Number of switch positions: 2
  • With zero (off) position: No
  • With retraction in 0-position: No
  • Device construction: Built-in device
  • Width in number of modular spacings: 0
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Type of control element: Toggle
  • Front shield size: 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
009283
Model Code
T0-1-15441/EZ
EAN
4015080092834
Product Length/Depth
96 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.101 kg
Certifications
IEC/EN 60947-3
UL
CE
UL 60947-4-1
CSA
CSA File No.: 012528
UL File No.: E36332
CSA Class No.: 3211-05
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
VDE 0660
IEC/EN 60204
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
