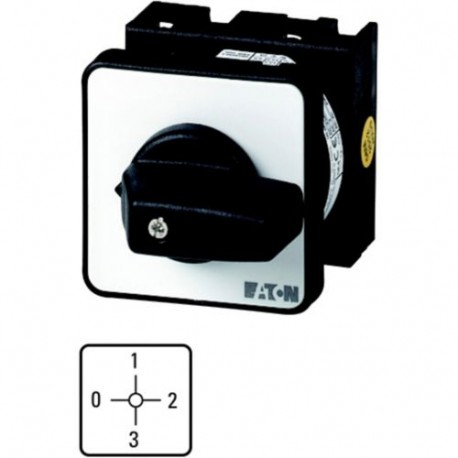

EATON - MOELLER T0-1-15110/E T0-1-15110/E 009172 Y7-9172 EATON ELECTRIC Series switches, Contacts: 2, 20 A, front plate: 0-1-2-3, 90 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15110/E 009172 Y7-9172 EATON ELECTRIC Series switches, Contacts: 2, 20 A, front plate: 0-1-2-3, 90 °, m..

T0-1-15110/E

009172

Y7-9172

EATON - MOELLER

1 Pcs.

Series switches, Contacts: 2, 20 A, front plate: 0-1-2-3, 90 °, maintained, flush mounting Series switch 2 poles 20 A Indicator plate: 0-1-2-3 90° Eaton Moeller® series T0 Series switches, T0, 20 A, flush mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, With 0 (Off) position, 0-1-2-3, Design number 15110 Series switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-1-2-3, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Series switch
Catalog Number
009172
Model Code
T0-1-15110/E
EAN
4015080091721
Product Length/Depth
76 mm
Product Height
8 mm
Product Width
48 mm
Product Weight
0.083 kg
Certifications
CSA File No.: 012528
CSA-C22.2 No. 94
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
CSA
UL Category Control No.: NLRV
CSA Class No.: 3211-05
IEC/EN 60204
IEC/EN 60947
UL
VDE 0660
UL File No.: E36332
CE
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 009172 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Reverser
Number of poles (EF001391) 1
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 20 A
Rated operation current Ie at AC-3, 400 V (EF001392) 11.5 A
Rated operation power at AC-3, 400 V (EF001364) 4 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection
