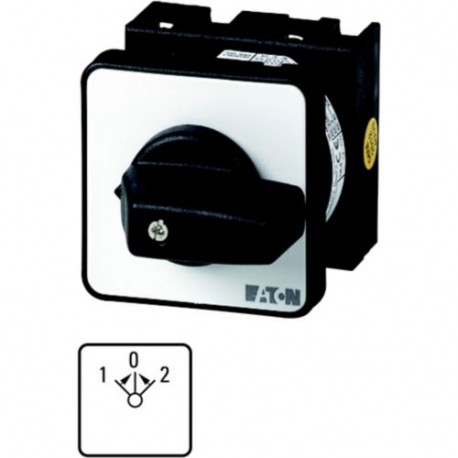

EATON - MOELLER T0-1-15074/E T0-1-15074/E 009146 Y7-9146 EATON ELECTRIC Revolving contact, Contacts: 2, 20 A, front plate: 1 0 2, 45 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15074/E 009146 Y7-9146 EATON ELECTRIC Revolving contact, Contacts: 2, 20 A, front plate: 1 0 2, 45 °, m..

T0-1-15074/E

009146

Y7-9146

EATON - MOELLER

1 Pcs.

Revolving contact, Contacts: 2, 20 A, front plate: 1>0<2, 45 °, momentary, flush mounting Rocker switch 2 poles 20 A Indicator plate: 1>0<2 45° Eaton Moeller® series T0 Revolving contact, T0, 20 A, flush mounting, 1 contact unit(s), Contacts: 2, 45 °, momentary, With 0 (Off) position, with spring-return from both directions to 0, 1>0<2, Design number 15074 Revolving contact, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1>0<2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for secure circuit redirection, this Eaton Moeller revolving contact switch, part number T0-1-15074/E, provides manual control for reversing or changing operational states within automation systems. These versatile components are standard across industrial machinery for managing directional functions or alternate power inputs.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Accessory Revolving contact
Catalog Number
009146
Model Code
T0-1-15074/E
EAN
4015080091462
Product Length/Depth
76 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.083 kg
Certifications
UL File No.: E36332
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
UL
UL 60947-4-1
CSA
CSA Class No.: 3211-05
CSA File No.: 012528
CE
CSA-C22.2 No. 94
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
