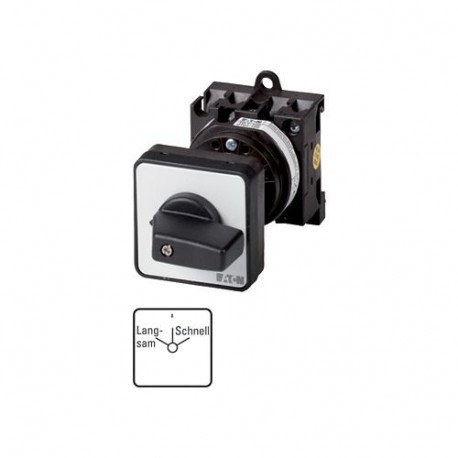

EATON - MOELLER T0-1-15060/Z T0-1-15060/Z 009121 Y7-9121 EATON ELECTRIC ON-OFF button, Contacts: 2, 20 A, front plate: Langsam I Schnell,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15060/Z 009121 Y7-9121 EATON ELECTRIC ON-OFF button, Contacts: 2, 20 A, front plate: Langsam I Schnell,..

T0-1-15060/Z

009121

Y7-9121

EATON - MOELLER

1 Pcs.

ON-OFF button, Contacts: 2, 20 A, front plate: Langsam>I ON-OFF pushbutton switch 2 poles 20 A Indicator plate: Eaton Moeller® series T0 ON-OFF button, T0, 20 A, rear mounting, 1 contact unit(s), Contacts: 2, 45 °, momentary, With 0 (Off) position, with spring-return, Langsam>I ON OFF button, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: Langsam>I

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Accessory ON OFF button
Catalog Number
009121
Model Code
T0-1-15060/Z
EAN
4015080091219
Product Length/Depth
118 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.112 kg
Certifications
IEC/EN 60947-3
UL
CSA File No.: 012528
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
CE
CSA
UL File No.: E36332
VDE 0660
CSA Class No.: 3211-05
IEC/EN 60947
CSA-C22.2 No. 94
UL Category Control No.: NLRV
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 009121 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) On/Off switch
Number of poles (EF001391) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated permanent current Iu (EF001389) 20 A
Number of switch positions (EF000231) 3
With zero (off) position (EF001416) No
With retraction in 0-position (EF002428) No
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) Yes
Suitable for front mounting (EF007246) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) Yes
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 48x48 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
